UniLight 25mm Gear Spotlight, 6Wx2, Kurz, T-Fuse - White

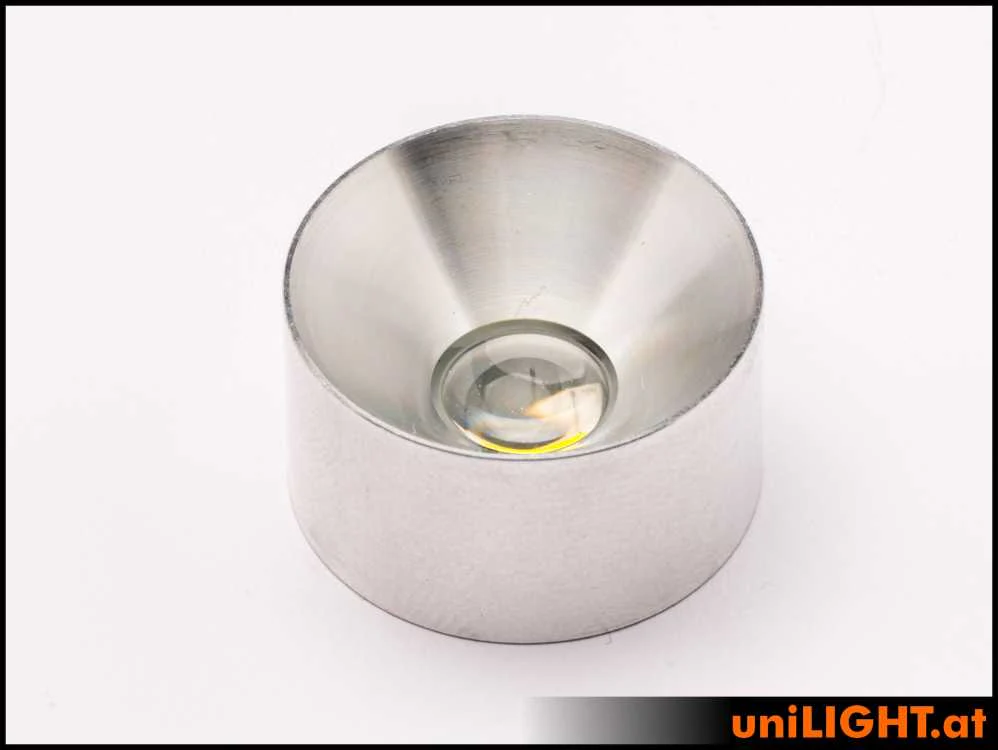

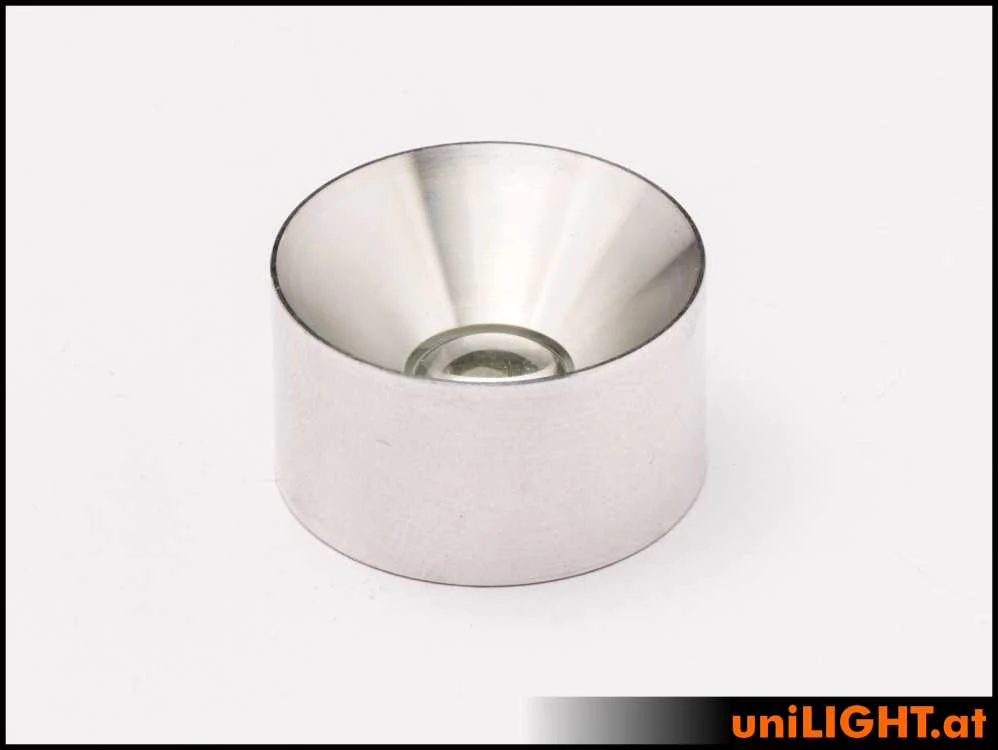

UniLight 25mm Gear Spotlight, 6Wx2, Kurz, T-Fuse - White SPOT25XF-060x2-WE

Innovative ultrapower spotlight with integrated optics and approx. 450 lumens output, absolute novelty in terms of brightness thanks to high-performance COB chip technology in an extremely compact design. CNC machined aluminium reflector with 25mm diameter, built-in thermal fuse to optimize performance and weight for use as a landing gear spotlight. Without a landing gear leg or sufficient air for cooling, the fuse will switch off the headlight after approx. 1 minute of operation, so it should be mounted directly on metal.

These spotlights already have optics installed. This is why they are available as standard with a beam angle of approx. 90 ° or in the directional version with 45 °
Direct operation with 2S (8V) LiPo, with 3S (12V) the enclosed additional resistor must be soldered in. Make sure there is sufficient cooling air during operation. For the first time in the model building sector, the spotlights have an integrated excess temperature fuse. If the housing becomes too warm during operation, the light is switched off safely and safely.

Performance: 6Wx2 reference power
Voltage: 8V, use enclosed resistor for 12V, 0.7A
Electricity: 0.5A
Beam angle: ~45° or 90°
Light intensity: ~450 Lumen WHITE
Light intensity: ~450 Lumen WARMWHITE
Dimension: 25x14mm
Weight: 10g (without cable)

Ready to use with 1m connection cable and additional resistor for 3S operation

With the X2 technique high power LEDs are operated in a "cluster". These achieve double the light output for the same heat or the same light output at half heat dissipation. Yet our X2 lights are still fully compatible with all our other lamps. If X2 lights, such as spotlights, are supplied with separate cables, these cables must be used in the delivered wiring! X2 lights are reacting more strongly on a weakening battery.

The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S LiPo and is dependent on bulbs, operating mode and technology.

Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.

Note: The LED lights are extremely bright! Never look directly into a LED!
