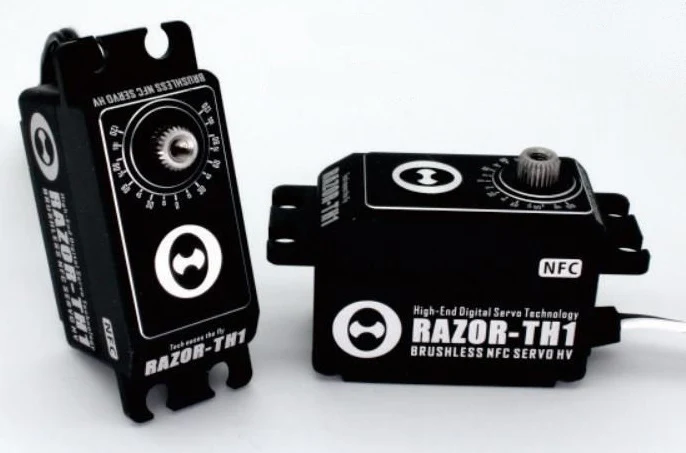

Theta Razor TH1 NFC HV Low-Profile Brushless Servo 30kg/0.051@5A/8.4V TS-RTH1
Theta Razor TH1 NFC HV Low-Profile Brushless Servo TS-RTH1
High voltage, High-Torque, low profile size brushless servo.
Ideal tail servo for 600-700 sized machines.
The Servos are at the top of their class due to their ability to be fully programmed via an Android NFC enabled smart phone. You can adjust things such as the center point, refresh rate, acceleration, as well as the PID control loop of the servo. You can make it feel however you want it to!
|
Voltage (V) |
Current (A) |
Speed (s/60°) |
Torque (kg*cm) |
|
5.0 |
3.0 |
0.087 |
19 |
|
6.0 |
3.0 |
0.072 |
21 |
|
7.4 |
3.0 |
0.064 |
23 |
|
8.4 |
3.0 |
0.056 |
24 |
|
5.0 |
5.0 |
0.079 |
22 |
|
6.0 |
5.0 |
0.065 |
26 |
|
7.4 |
5.0 |
0.058 |
28 |
|
8.4 |
5.0 |
0.051 |
30 |
Original: $120.64
-65%$120.64
$42.22Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Theta Razor TH1 NFC HV Low-Profile Brushless Servo TS-RTH1
High voltage, High-Torque, low profile size brushless servo.
Ideal tail servo for 600-700 sized machines.
The Servos are at the top of their class due to their ability to be fully programmed via an Android NFC enabled smart phone. You can adjust things such as the center point, refresh rate, acceleration, as well as the PID control loop of the servo. You can make it feel however you want it to!
|
Voltage (V) |
Current (A) |
Speed (s/60°) |
Torque (kg*cm) |
|
5.0 |
3.0 |
0.087 |
19 |
|
6.0 |
3.0 |
0.072 |
21 |
|
7.4 |
3.0 |
0.064 |
23 |
|
8.4 |
3.0 |
0.056 |
24 |
|
5.0 |
5.0 |
0.079 |
22 |
|
6.0 |
5.0 |
0.065 |
26 |
|
7.4 |
5.0 |
0.058 |
28 |
|
8.4 |
5.0 |
0.051 |
30 |
