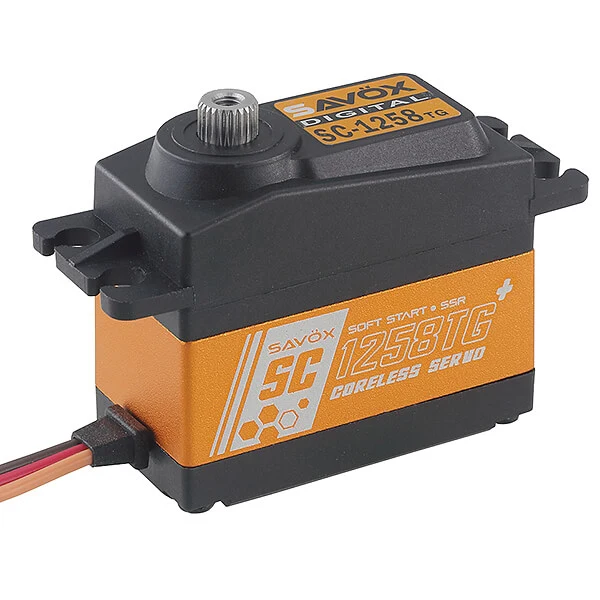

Savox SC-1258TG+ Standard Size Coreless Digital Servo With Soft Start 0.08s/12kg@6v SC1258TGP
Savox SC-1258TG+ Standard Size Coreless Digital Servo With Soft Start 0.08s/12kg@6v SC1258TGP
The SC1258TG Plus is a high speed standard size servo which combines leading edge technology with super high 12-bit (4096) resolution for smooth operation. It is ideal for applications requiring high speed.
"Plus" series servos feature Soft Start and Sanwa SSR compatibility.
Features:
- Extremely strong titanium gears ensure long-life, durability, and light weight.
- Ideal for CCPM on 600 and 700 class heli, steering servo on 1/10 scale buggies.
- Aluminium middle case allows for cooler operating temperatures.
Specifications:
Torque @ 4.8v - 9.6kg/133.3oz-in
Torque @ 6v - 12.0kg166.6oz-in
Speed @ 4.8v - 0.10 sec/60 deg
Speed @ 6v - 0.08 sec/60 deg

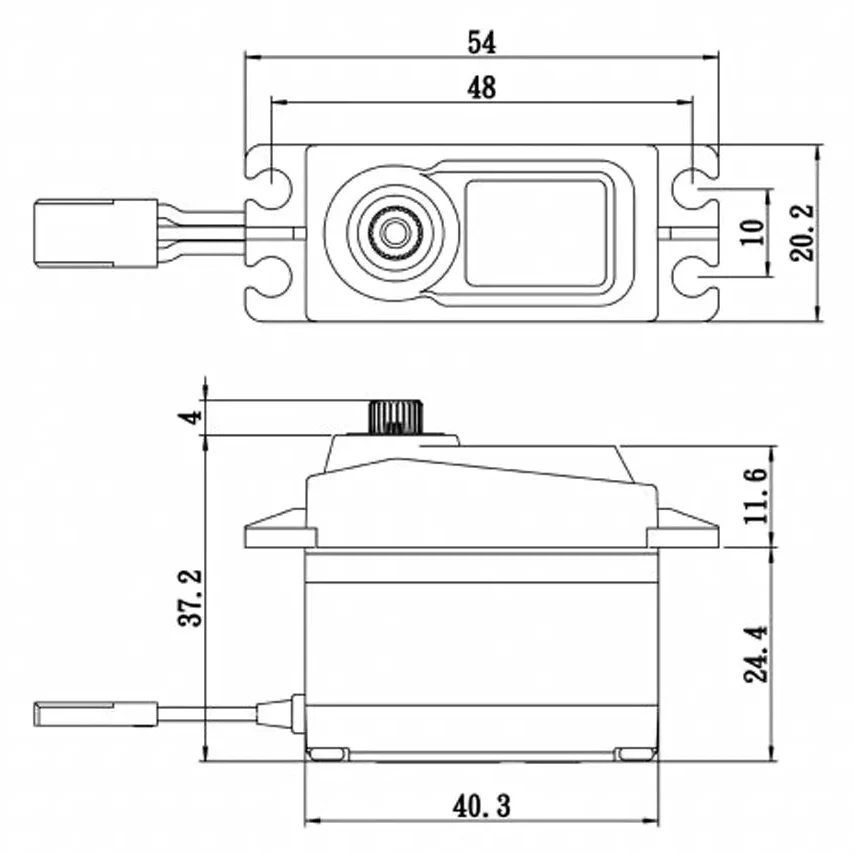

Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2
Weight: 64g
Spline: 25 Tooth
