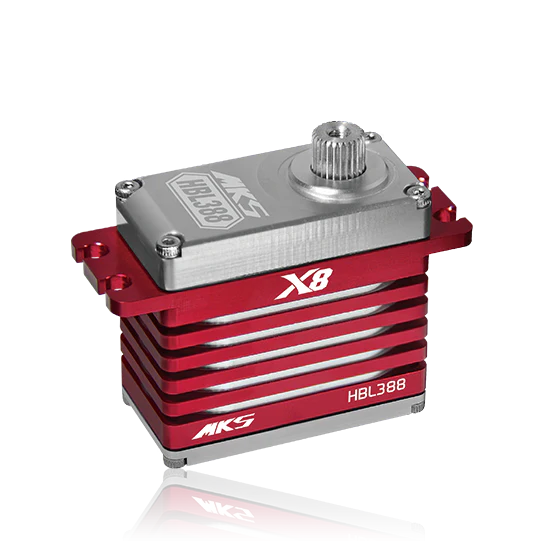

MKS HBL388 Brushless Servo 22mm, 68kg/0.14s 6.0V - 8.4V

MKS HBL388 Brushless Servo 22 mm, 68 kg/cm, 0.14s/60°

Specifications:

Operating voltage - 6.0 ~ 8.4 V DC Volt
Dimensions - 43 x 22 x 39.65 mm
Weight - 93.3 g
Torque 6.0V - 50 kg/cm
Torque 7.4V - 60 kg/cm
Torque 8.4V - 68 kg/cm
Speed 6.0V - 0.19 s
Speed 7.4V - 0.16 s
Speed 8.4V - 0.14 s
Stall current - 5.9A (6.0V), 7.5A (7.4V), 8.4A (8.2V)
Center / max. Frequency - 1520μs / 333Hz
Dead Band - 0.0008ms
Case - All Aluminium Case
Motor - Brushless Motor
Gear - Metal Alloy Gear
Bearing - 2x Ball Bearing
