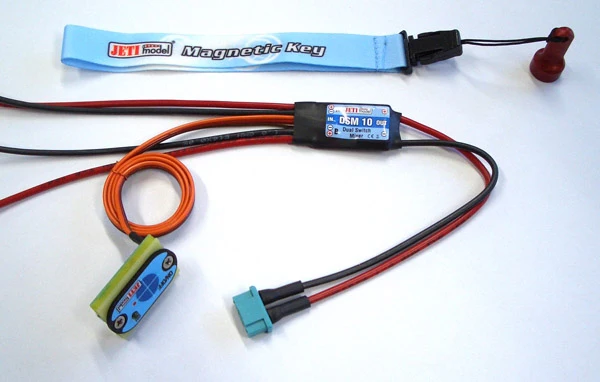

Jeti DSM10 Dual Battery Intelligent Switch J-DSM-10 22985480

DSM-10 Dual Battery Intelligent Switch J-DSM-ESC from Jeti

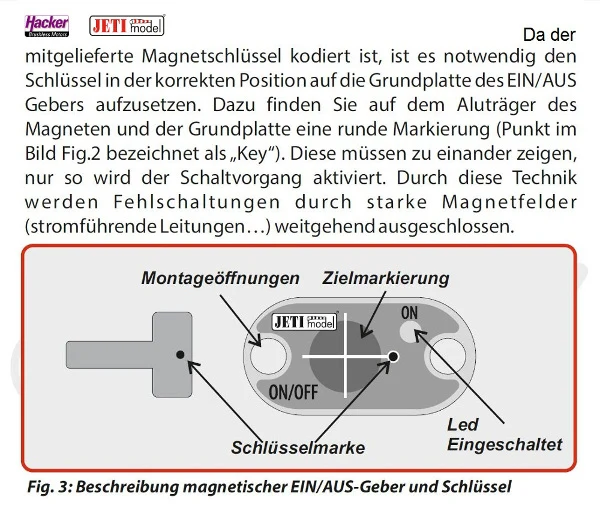

This electronic circuit is used to power the receiver and servos in the model. The DSM ESC BEC combines the power of two speed controller / controller or a combination of receiver battery (backup battery) and a BEC regulator to supply the Rx and the servos. ON / OFF switching is done here with the known magnetic switch actuator.

Technical Data:

• Input Voltage [V]: 5 - 8,4

• Output current (duration) [A]: 10

• Output current (impulse) [A]: 20

• Current in OFF-position [µA]: 130

• Temperature [°C]: -10 bis +85

• Weight [g]: 24

• Dimensions [mm]: 38x20x7
