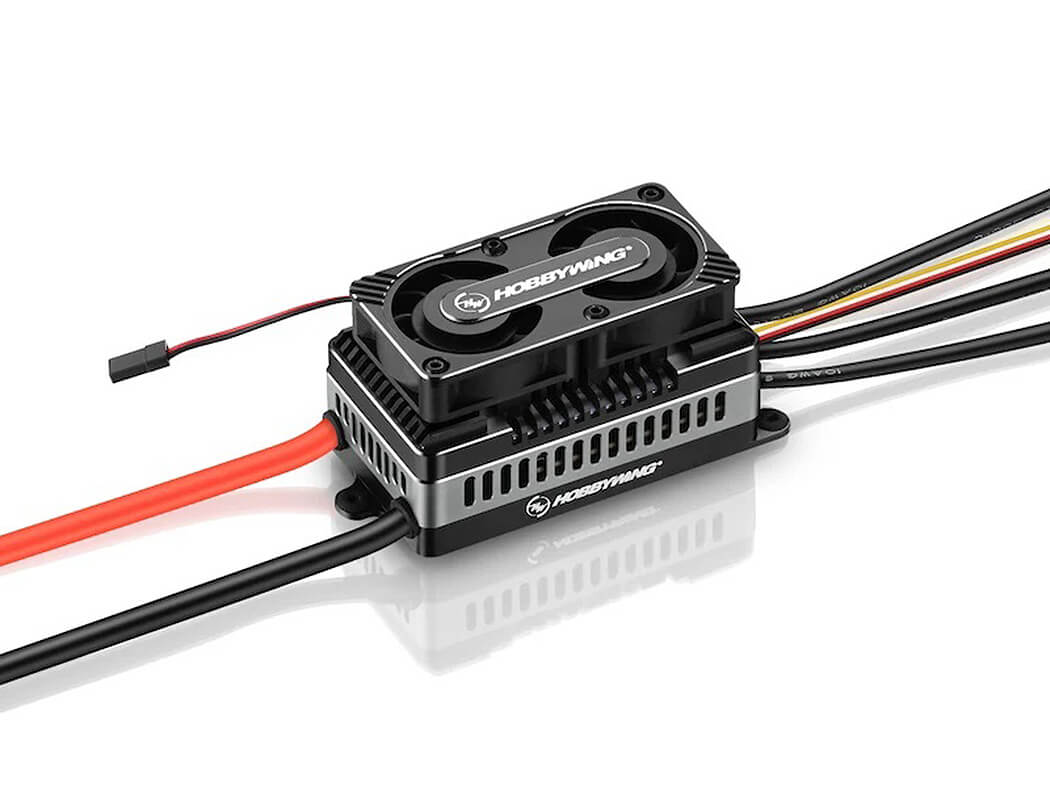

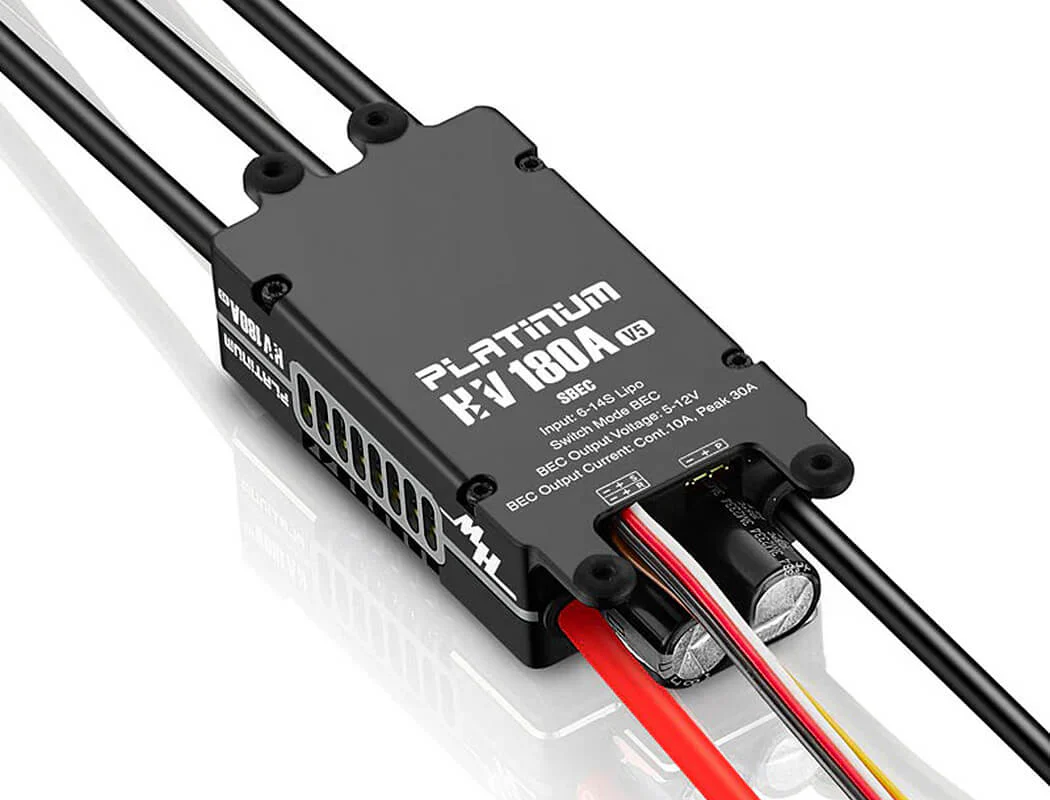

Hobbywing Platinum 180A HV Sbec V5 ESC HW30209103

Product image 1
Product image 2
Product image 3
Product image 4

Hobbywing Platinum 180A HV Sbec V5 ESC HW30209103

Hobbywing Platinum 180A HV Sbec V5 ESC HW30209103

Specifications:

Model: 180A HV
Application: 550-700 class electric helicopter (main rotor length 550-700mm),or fixed-wing
Input (V) Lipo: 6-14S
Cont./Peak Current (10s): 180A/260A
BEC (Switch Mode): 5-12V adjustable (step: 0.1V) 10A/30A Cont./Peak
Separate Programming Port: Tunalyser / LCD Program Box / OTA Programmer
Input Wires: Red-10AWG-150mm / Black-10AWG-150mm
Output Wires: Black-10AWG-100mm
Output Connector: Gold connector
Mounting-Holes: M3, 16.5* 90x34mm
Size: 100.6 x 45.5 x 26.1 mm
Weight: 250.6g (Without Fan)

$130.20

Original: $372.00

-65%
Hobbywing Platinum 180A HV Sbec V5 ESC HW30209103—

$372.00

$130.20

Product Information

Shipping & Returns

Description

Hobbywing Platinum 180A HV Sbec V5 ESC HW30209103

Specifications:

Model: 180A HV
Application: 550-700 class electric helicopter (main rotor length 550-700mm),or fixed-wing
Input (V) Lipo: 6-14S
Cont./Peak Current (10s): 180A/260A
BEC (Switch Mode): 5-12V adjustable (step: 0.1V) 10A/30A Cont./Peak
Separate Programming Port: Tunalyser / LCD Program Box / OTA Programmer
Input Wires: Red-10AWG-150mm / Black-10AWG-150mm
Output Wires: Black-10AWG-100mm
Output Connector: Gold connector
Mounting-Holes: M3, 16.5* 90x34mm
Size: 100.6 x 45.5 x 26.1 mm
Weight: 250.6g (Without Fan)
