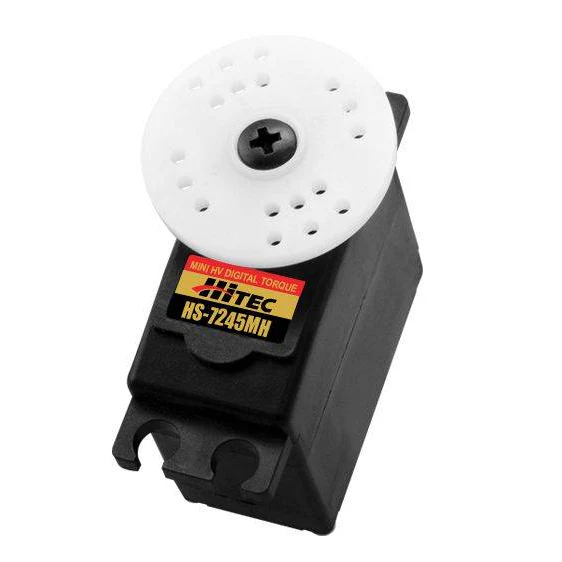

Hitec HS7245MH Mini Digital Coreless Servo 34g 6.4kg/0.11s 6.0V - 7.4V 2216574
Hitec HS-7245MH Mini Digital Coreless Servo 34g 6.4kg/0.11s 6.0V - 7.4V 2216574
Watch out, here it comes! Our new high voltage, coreless HS-7245MH servo delivers exceptional speed and torque in a compact package. Built with an efficient coreless motor optimized for 7.4V operation and heavy-duty metal gear train with dual ball bearings, this high-end mini servo delivers unbridled performance just like its brother, the HS-7235MH.
Whether you are flying mid-size gas and electric airplanes, 500-550 electric helis, or driving 1/12th scale on-road racers and 1/18th scale rock crawlers, the full-size muscle of this servo will make you the master of your RC domain. Exceeding Your Expectations Is What We Do!
Features:
- Our Best High Speed Mini Servo
- Efficient Coreless Motor
- Heavy Duty Metal Gear Train
- Dual Ball Bearing
- 7.4v 2-Cell LiPo Capability
- G2.5 Fully Programmable Digital Circuitry
- Spline: 24 Tooth
Programmable Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Overload Protection
- Resolution
- Data Save / Load
- Program Reset
Specifications:
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 6.0V ~ 7.4V |
| Speed (Second @ 60°) | 0.13 ~ 0.11 |
| Maximum Torque Range oz. / in. | 72 ~ 89 |
| Maximum Torque Range kg. / cm. | 5.2 ~ 6.4 |
| Current Draw at Idle | 12 mA |
| No Load Operating Current Draw | 190 mA |
| Stall Current Draw | 1,600 mA |
| Dead Band Width | 2 µs |
| Physical Specifications | |

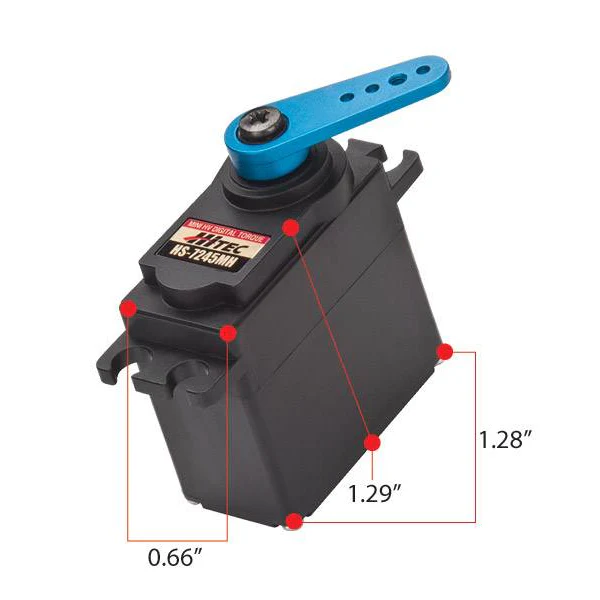

| Dimensions (Inches) | 1.28 x 0.66 x 1.29 |
| Dimensions (Metric) | 32.4 x 16.8 x 32.8 |
| Weight (Ounces) | 1.20 |
| Weight (Gram) | 34.0 |
| Circuit Type | G2.5 Programable Digital |
| Motor Type | Coreless Metal Brush |
| Gear Material | Metal |
| Bearing Type | Dual Ball Bearing |
| Output Shaft (type / Ømm) | Standard 24 |
| Case Material | Plastic |
| Dust / Water Resistance | N / A |
| Connector Gauge (AWG) / Strand Count | 22 / 60 |
