Hitec HS5086WP Micro Digital Cored Servo 28.5g 3.6kg/0.15s 4.8V - 6.0V 2221970
Hitec HS-5086WP Micro Digital Cored Servo 28.5g 3.6kg/0.15s 4.8V - 6.0V 2221970
INDUSTRY FIRST! HS-5086WP DIGITAL MICRO WATER PROOF 4.8v to 6.0v

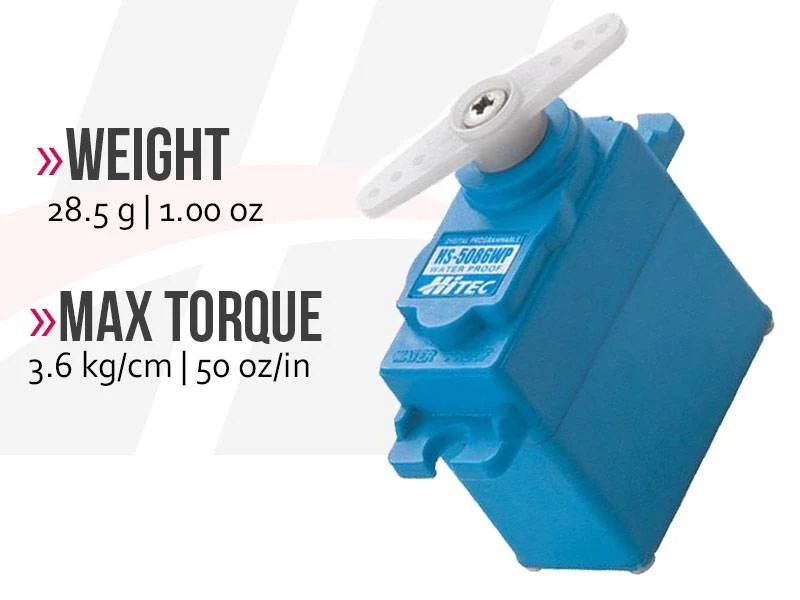

The HS-5086WP is the smallest in Hitec's class of waterproof servos. With heavy-duty metal gears and a ball bearing supported output shaft, the HS-5086WP is among the most durable and reliable micro servo for wet conditions. Possessing the same size as our popular HS-85MG and the industry's first IP67*rating, this spunky mini will keep your RC vehicle, boat, aircraft or robot watertight, no matter what the weather or surroundings. Expect More. Expect Hitec!
Programming Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Data Save / Load
- Program Reset
- 24 Tooth Spline
Advanced Specifications:
| Control System: | Programmable Digital |
| Operating Voltage Range: | |
| Idle Current @ 6.0v: | 3 mA |
| No Load Running Current @ 6.0v: | 280 mA |
| Stall Current @ 6.0v: | 1800 mA |
| Dead Band Width: | 2 |
| Potentiometer Type: | 2 Slider 500K Cycle Rated |
| Connector Wire Length: | 9.8 in / 250 mm |
| Connector Wire Type: | Flat |
| Connector Wire Strand Count / Gauge: | 40 Strand / 25 ga. |
Original: $58.09
-65%$58.09
$20.33Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Hitec HS-5086WP Micro Digital Cored Servo 28.5g 3.6kg/0.15s 4.8V - 6.0V 2221970
INDUSTRY FIRST! HS-5086WP DIGITAL MICRO WATER PROOF 4.8v to 6.0v
The HS-5086WP is the smallest in Hitec's class of waterproof servos. With heavy-duty metal gears and a ball bearing supported output shaft, the HS-5086WP is among the most durable and reliable micro servo for wet conditions. Possessing the same size as our popular HS-85MG and the industry's first IP67*rating, this spunky mini will keep your RC vehicle, boat, aircraft or robot watertight, no matter what the weather or surroundings. Expect More. Expect Hitec!
Programming Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Data Save / Load
- Program Reset
- 24 Tooth Spline
Advanced Specifications:
| Control System: | Programmable Digital |
| Operating Voltage Range: | |
| Idle Current @ 6.0v: | 3 mA |
| No Load Running Current @ 6.0v: | 280 mA |
| Stall Current @ 6.0v: | 1800 mA |
| Dead Band Width: | 2 |
| Potentiometer Type: | 2 Slider 500K Cycle Rated |
| Connector Wire Length: | 9.8 in / 250 mm |
| Connector Wire Type: | Flat |
| Connector Wire Strand Count / Gauge: | 40 Strand / 25 ga. |
