Hitec D625MW Standard Digital Cored Servo 57g 10kg/0.13s 4.8V - 7.4V 2221050

Hitec D625MW Standard Digital Cored Servo 57g 10kg/0.13s 4.8V - 7.4V 2221050

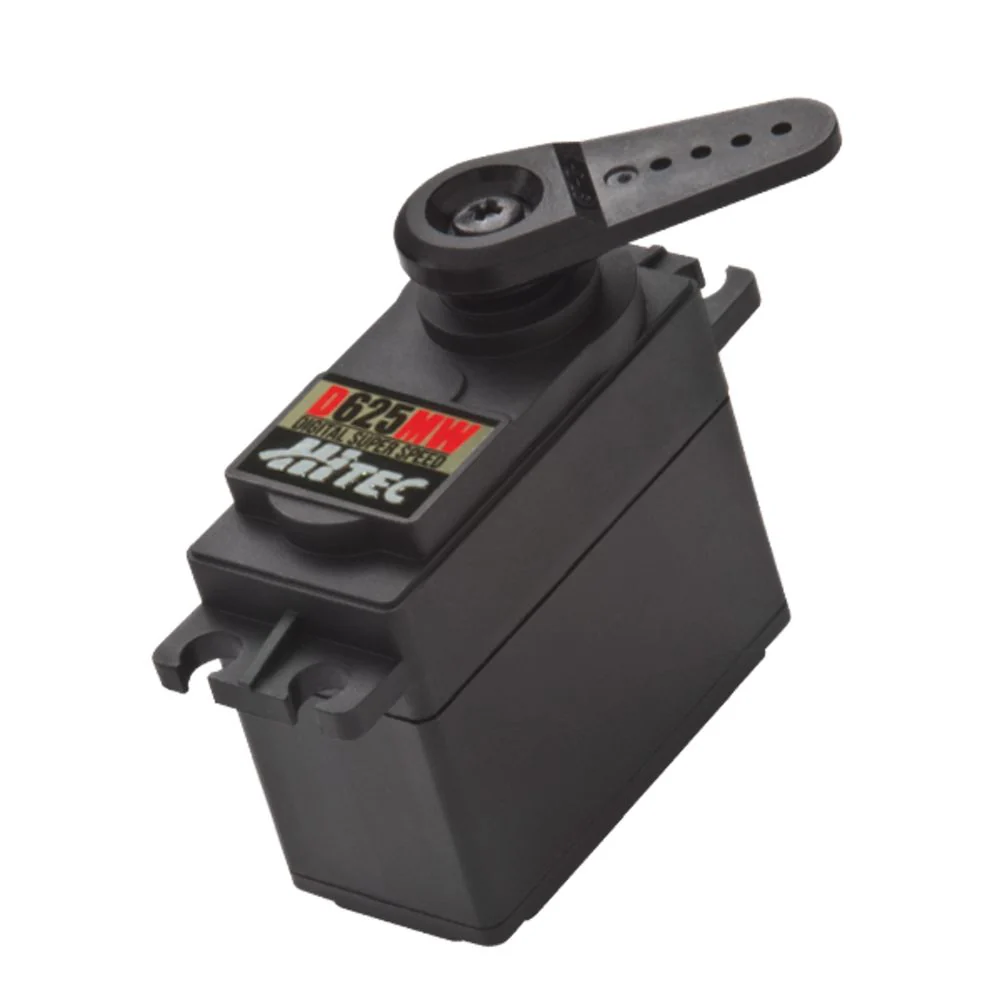

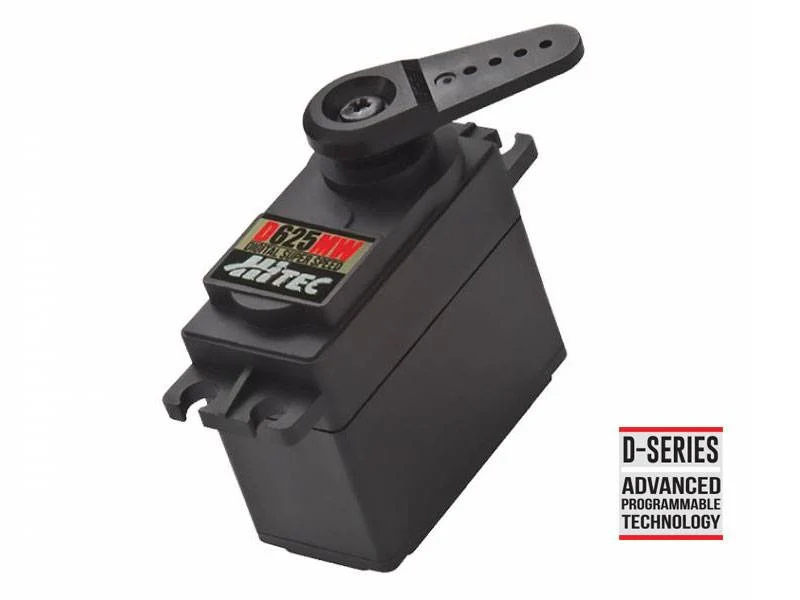

A programmable, 32-bit, high speed, metal gear servo

The metal gear D-625MW is part of the Hitec D-Series servo range. All Hitec D-Series servos have been designed using brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement.

The speedy, powerful line operates on a wide 4.8 - 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators.

Featuring Hitec's industry standard 25-tooth (Futaba) output spline with 3mm hex screw, each D-Series servo brings a hitherto unknown monster performance.

Key Features:

• Programmable digital amplifier with MOSFET drive

• Long life (1M cycles) indirect potentiometer

• Narrow dead bandwidth and high standing torque

• Gold-plated contacts
• Spline: 25 Tooth

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Overload Protection
• Data Save / Load
