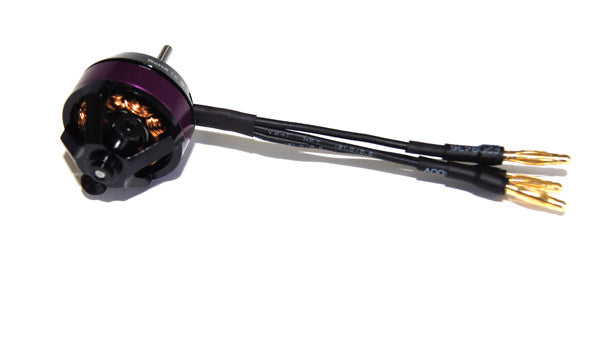

Hacker A10-9L Brushless Outrunner Motor 1700KV 97100009
Hacker A10-9L Brushless Outrunner Motor 1700KV 97100009
The A10 motors are smalle outrunner of our series and provides great efficiency and light weight.
They’re ideal for small electric airplanes up to 200g (7oz). Featuring a Slotted 12-pole outrunner design. The Curved Neodym-Magnets offer a perfect gap from the inside of the rotor for optimal power and efficiency

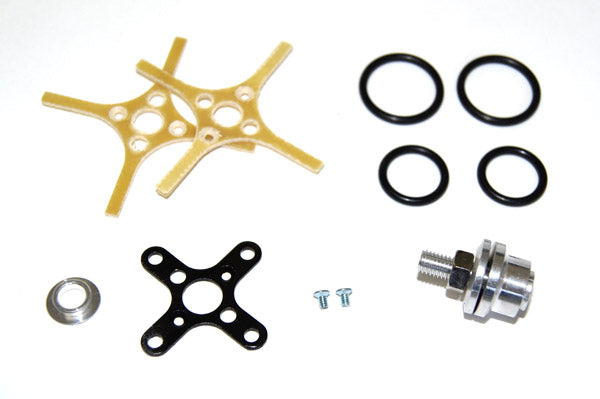

The Backmount from Aluminium and Fiberglas, Prop adapter for GWS, STO and APC-Props with needed O-Rings and all screws are included.The motors are available in different Lengths and Windings. Please refer data the data tables to find the right motor for your application.
Specifications:
Powerange max. 75W (15 sec.)
Idle Current @ 8,4V 0.72A
Resistance (Ri) 0,18 Ohm
RPM/Volt (kv) 1700 U/min-1
Weight 20g

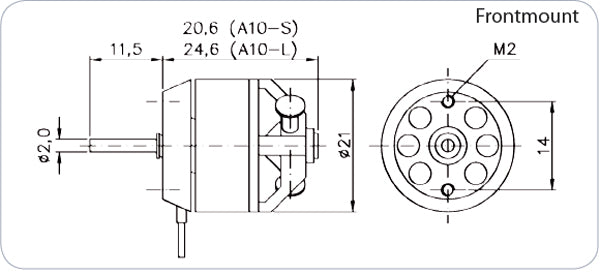

Diameter 21 mm
Length 25 mm
Poles 12-Pole Outsiderunner
recom. Speedcontroler 4A to 7A Brushless
recom. Timing 20° - 25°
Original: $41.25
-65%$41.25
$14.44Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Hacker A10-9L Brushless Outrunner Motor 1700KV 97100009
The A10 motors are smalle outrunner of our series and provides great efficiency and light weight.
They’re ideal for small electric airplanes up to 200g (7oz). Featuring a Slotted 12-pole outrunner design. The Curved Neodym-Magnets offer a perfect gap from the inside of the rotor for optimal power and efficiency
The Backmount from Aluminium and Fiberglas, Prop adapter for GWS, STO and APC-Props with needed O-Rings and all screws are included.The motors are available in different Lengths and Windings. Please refer data the data tables to find the right motor for your application.
Specifications:
Powerange max. 75W (15 sec.)
Idle Current @ 8,4V 0.72A
Resistance (Ri) 0,18 Ohm
RPM/Volt (kv) 1700 U/min-1
Weight 20g
Diameter 21 mm
Length 25 mm
Poles 12-Pole Outsiderunner
recom. Speedcontroler 4A to 7A Brushless
recom. Timing 20° - 25°
